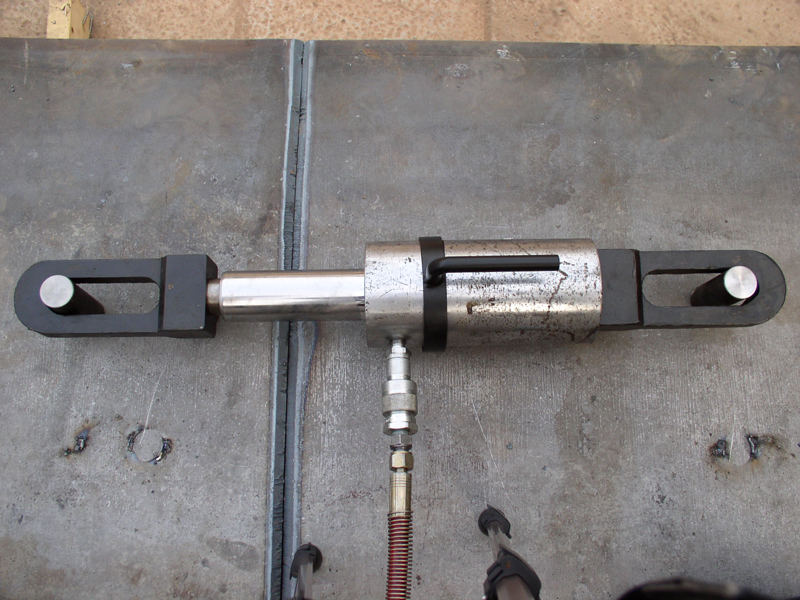

Pull Cylinder - Plain Ram, Single Acting, Spring Return


Pull Cylinder
Pull Cylinder
Pull Cylinder
Pull Cylinder

Capacity 10 - 30 ton / Stroke 150 mm / Max. Working Pressure 700 bar

Hydraulic Power Packs, Pumps, Cylinders

Features / Application :

» Replacement for Turn buckle mechanism for heavy loads.
» Compression spring automatically extends piston rod when pump pressure is    released.
» For pulling and tensioning in heavy fabrication and maintenance.
» Useful in steel structural works and tensioning.


Capacity´┐Ż
(ton)
Capacity
(kN)
Stroke
(mm)
Model Effective area
(cm2)
Oil cap.
(cc)
Extended
(mm)
Closed height
(mm)
Approx Weight
(kg)
10 107 150 OSPC 10-150 15.3 230 691 541 14
20 225 150 OSPC 20-150 32.1 485 770 620 28
30 332 150 OSPC 30-150 47.4 715 820 670 48
