Stud Bolt Tensioners


Stud Bolt Tensioners

Stud Bolt Tensioners

Range M16 - M150 (3/4 ” - 5 3/4") / Max. Working Pressure 1500 bar

Hydraulic Power Packs, Pumps, Cylinders

Application :

» Suitable for tensioning of flanges of pressure Vessels, Boiler feed pumps,
   Compressor covers, Heat exchangers, Pipe flanges and Anchor bolts.
» Used in steel, Cement and Power plants, Petroleum extraction & Process plants.
» Particularly beneficial on applications requiring uniform joint loading.

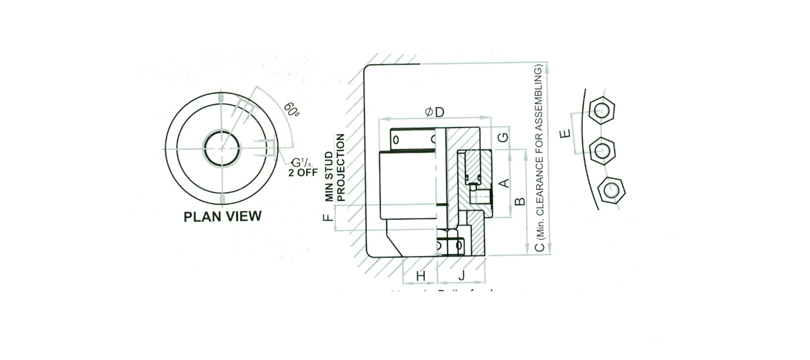

Model (metric) Bolt / Stud Size Model (imperial) Capacity (ton) Capacity (kN) Stroke (mm) Effective area (cm2) Dimensions (mm) Wt. (Approx.) (kg)
(metric) (inch) A B C D E F G
-
-
 33 / 4 OBT 15-385-375 385 1751 15 250.2 90 197 335 285
220
 95 120 31.7
OBT 15-385-100
100
 -
-
222
100
-
-
 4
OBT 15-385-400
222
100
-
-
 41 / 4"
OBT 15-385-425
228
110
OBT 15-385-110
110
 41 / 4"
-
228
110
-
-
 41 / 2"
OBT 15-385-450
230
115
OBT 15-385-120
120
 -
-
236
120
-
-
 43 / 4"
OBT 15-385-475
236
120
OBT 15-385-125
125
 -
-
242
125
OBT 15-485-125
125
 -
-
 485 2218 15 316.9 93 220 390 325 262 125 141 43.5
-
-
 5
OBT 15-485-500
 262 130
OBT 15-485-130
130
 -
-
265
130
-
-
 51/4"
OBT 15-485-525
268
130
-
-
 51/2"
OBT 15-485-550
270
140
OBT 15-485-140
140
 -
-
275
140
-
-
 53/4"
OBT 15-485-575
278
145
OBT 15-485-150
150
 -
-
280
150
